About

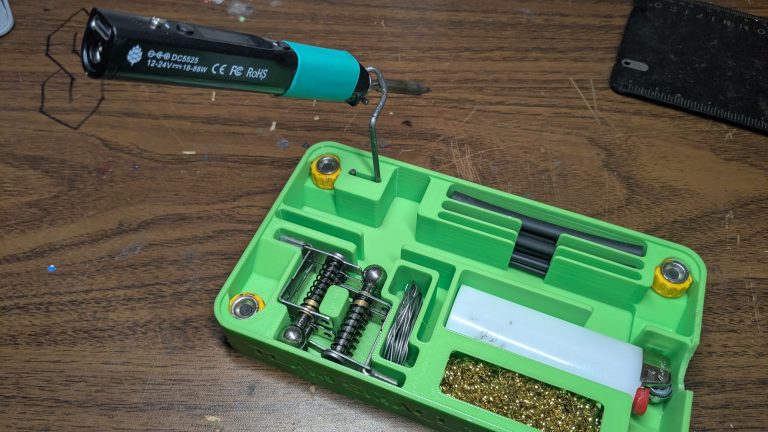

This is my custom case for holding a Pinecil Soldering Iron and an Omnifixo Helping Hands.

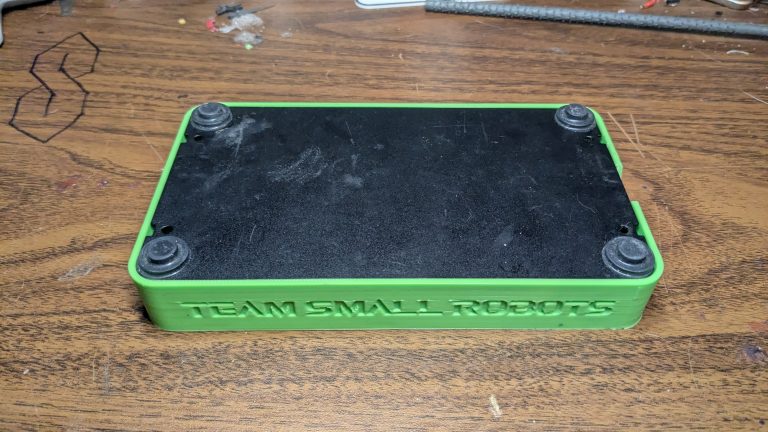

The Omnifixo base acts like a lid and attaches using the Omni Magnets.
The only additional hardware you need is about half a foot of 3/32 (2.0-2.5mm) piano wire, which can be found at most hobby shops and hardware stores.
Holds the following:
- Pinecil
- Detachable Soldering Iron Stand
- Omnifixo
- Solder
- Tip Cleaner
- Lighter
- Heatshrink
Feel free to download and use mine or modify it better suit your own needs!
The Wire Stand

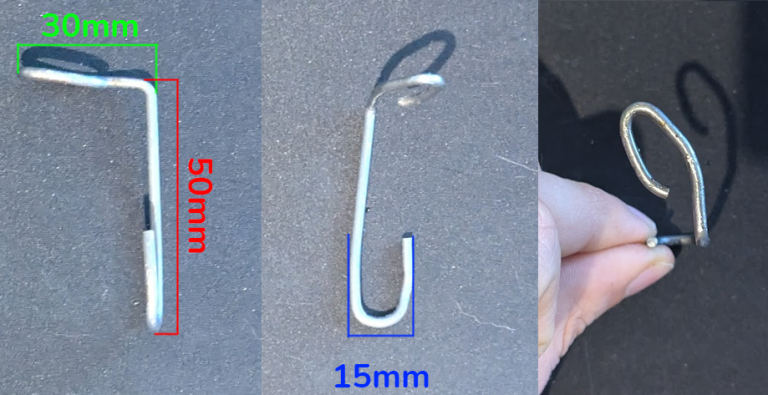

Using a pair of pliers, bend the 3/32″ (2.0-2.5mm) piano wire into a shape similar to this. You don’t have to be too precise. The case is a little oversized to account for bending error.
